Material: stainless seel,copper,brass,nickel,titanium, monel,inconel,polypropylene and so on
Wire diameter: 0.10mm-0.55mm (common wire: 0.20mm-0.25mm)
Wire shape:round or flat
Wire strands: 1,2,3,4 or customized
Hole size:2*3mm,4*5mm,12mm*6mm or customized
Width: 40mm,80mm,100mm,150mm,200mm,300mm,400mm,500mm,600mm etc
Shape: In roll, piece or tube
Surface: flat-type and corrugated type
Sample: Available
Delivery period: Stock size, 1-2 working days, customized size, 10-15 working days
Packaging:Wrapped with plastic bag,then loaded in carton box or wooden case
Products description

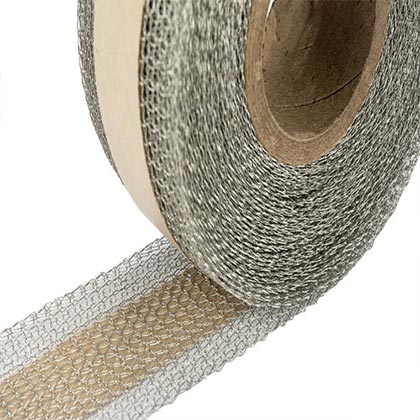

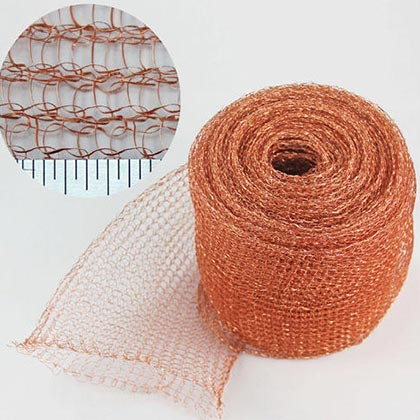

Knitted wire mesh is made up of metal wire strand knitted into a mesh structure.Knitting wire produces a mesh of interlocking loops giving knitted mesh a two-way stretch characteristic.From a funcational point of view, this flexibility gives knitted mesh its unique advantages for industrial uses.

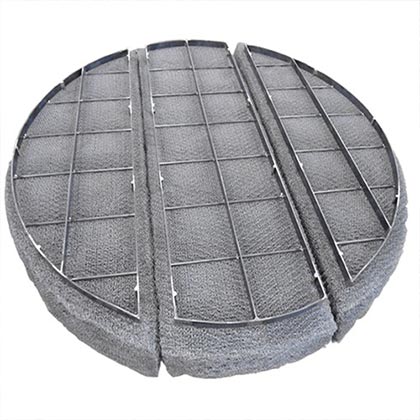

Knitted wire mesh can be used for liquid-gas filtration systems; the knitted wire mesh acts as a filter between liquids and gases. These filters can be used in many industries, such as chemical, petroleum, pharmaceutical, metallurgy, cooking, etc. An example of a knitted wire mesh filter used in the cooking industry is also known as a grease filter. A grease filter is placed above cooking areas to eliminate entrained grease and fat.
Knitted wire mesh can also be used as engine breathers to act as filtration in vehicles. The breather pipe in an engine is a pipe that allows an internal combustion engine to vent pressure out of the engine. Knitted wire mesh is the ideal material to be used as filters for breather pipes as it can remove oil droplets of various sizes and therefore result in reduced emissions, which in turn protects the environment.
Knitted wire mesh can be utilised for sound damping in the motor vehicle industry; the knitted wire mesh acts as a physical sound barrier, vibration damper, sound absorber and airflow regulator. This is why it can be used as silencers in air motors and starters, cylinders and valves.
Features of knitted wire mesh
High strength.
Corrosion and rust resistance.
Acid and alkali resistance.
High temperature resistance.
Soft and won’t hurt the mechanical parts.
Durable and long service life.
Good shielding performance.
High filtration efficiency.
Excellent cleaning capacity.
