Material:pure titanium as substrate coated with platinium
Substrate shape: sheet,plate,mesh,rod,tube&wire
Color: silver white
Working current: <4000 A/㎡
Working temperature: <80 ℃
Coating thickness: 0.5-10μm, or as customer’s request
Delivery period: Stock size, 1-2 working days, customized size, 10-15 working days
Packaging:Inside with plastic bag or EPE, outside with carton box or wooden box. Packing can be customized according to customer’s requirement
Products description

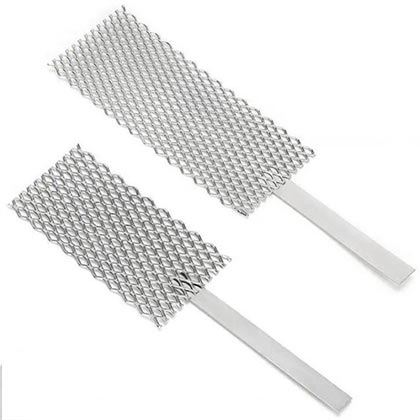

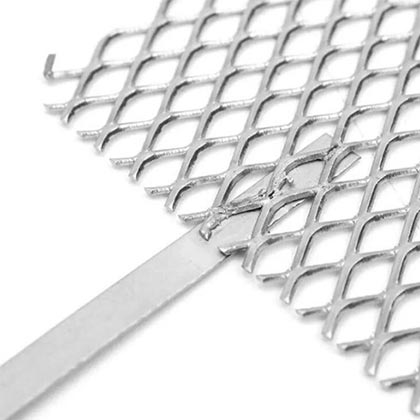

Platinum titanium is a platinium metal oxide or platinum layer-coated on a titanium substrate.It is non-consumption,durable and insoluble in the electrolyte. We can use platinum titanium anode for cathodic protection and electroplating.
Platinum is a highly valued metal and it is widely used in jewelry,engines and industrial machinery.
Advantages of Platinized Titanium Electrode
- Strong corrosion resistance, durability and high temperature resistance, high stability, can be used in various media
- The cost is lower than pure gold and pure platinum electrodes, but with similar electrochemical performance
- The overpotential is high for the oxygen-evolving reaction and very low for the hydrogen-evolving reaction
- It has the characteristics of high output current density,uniform conductivity and low loss, so suitable for insoluble anodes.
Applications of Platinized Titanium Electrode
Precious metal electroplating( silver,gold),
Hydrogen generator
Hydrogen-rich water cup
Hydrogen-rich water electrolysis device
Electrolysis water generator
Electrolysis of seawater for hydrogen production
Electrolysis of drinking water
Electrolytic synthesis of organic compounds,water treatment
