Custom Attributes
Color: Silver
Material: SUS302,304,304L,316,316L
Mesh Count: 7*40—500*3200
Filter Rating: 1um-315um
Shape: In roll, disc(round, square, rectangular or customized), tube
Sample: Available
Roll Width: 0.914m,1m,1.22m or customized
Roll Length: 10m,20m,30m or customized
Product Description

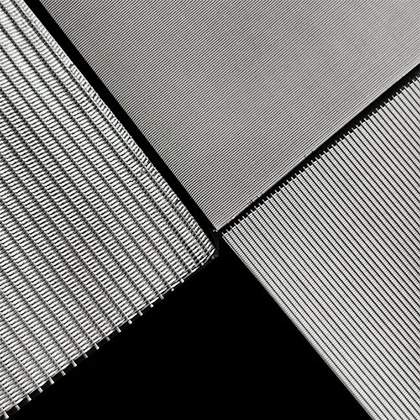

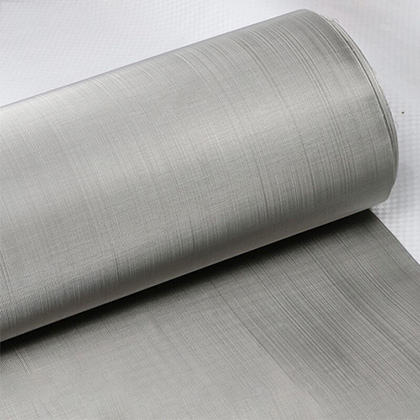

Dutch weave stainless steel wire mesh is made from stainless steel wire. Different from plain weave wire mesh and twill weave wire mesh,the dutch weave mesh has different diameter in the weft and warp directions.Commonly the warp wire is coarser wire,which can supply the high tensile strength for the wire mesh. The weft wire is finer wire,which can ensure the excellent filtering performance.

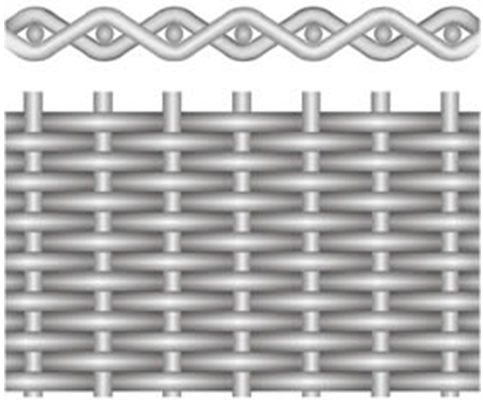

Dutch weave wire mesh can be divided into plain dutch weave wire mesh and twill dutch weave wire mesh. Plain dutch weave offer increased mechnical strength for industrial filtration.
Thanks to their cloased surface,filtration occurs at the point where warp and weft join.Dutch weave is manufatured in plain weave pattern,whereby the warp wires are interwoven with a wider pitch than the weft wires. This significantly increases the strength of the mesh in comparison with square meshes.

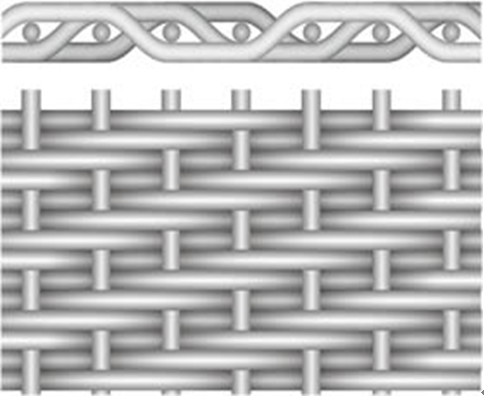

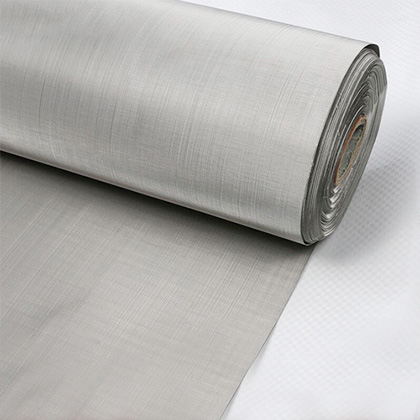

Twilled dutch woven wire mesh is the combination of dutch weave and twill weave. It is superior to the twill weave wire mesh due to the finer openings.It can support greater loads than the plain dutch weave wire mesh.It is ideally suited to heavy-duty filtration tasks.
 |
 |
| Plain Dutch Weave Wire Mesh | Twilled Dutch Weave Wire Mesh |
Characteristics
Acid-resisting, alkali-resisting,high temperature resisting
Strong tension and good abrasion performance
Stable,fine and high precision filtering
| Mesh Count Per Inch Warp * Shute | Wire Diameter Inches Warp * Shute | Nominal Micron Retention |
| Plain Dutch Weave | ||
| 12*64 | .023*.0165 | 180 |
| 24*110 | .015*.0105 | 115 |
| 30*150 | .009*.007 | 95 |
| 40*200 | .007*.0055 | 75 |
| 50*250 | .0055*.0045 | 60 |
| Mesh Count Per Inch Warp * Shute | Wire Diameter Inches Warp * Shute | Nominal Micron Retention |
| Twilled Dutch Weave | ||
| 20*250 | .0036*.008 | 87 |
| 30*250 | .010*.008 | 70 |
| 80*700 | .004*.003 | 30-35 |
| 165*800 | .0029*.0020 | 25 |
| 165*1200 | .0028*.0016 | 19 |
| 165*1400 | .0028*.0016 | 14 |
| 200*600 | .0026*.0018 | 26 |
| 200*900 | .0020*.0014 | 23 |
| 200*1400 | .0028*.0016 | 10 |
| 250*1370 | .0022*.0016 | 8 |
| 250*1400 | .0022*.0016 | 8 |
| 250*1620 | .0022*.0015 | 7-8 |
| 325*1370 | .0014*.0012 | 7 |
| 325*1700 | .0014*.0012 | 6 |
| 325*1900 | .0014*.0011 | 5 |
| 325*2300 | .0014*.0011 | 5 |
| 325*2800 | .0014*.0010 | 4 |
| 325*2400 | .0012*.0009 | 2-4 |
| 400*2800 | .0011*.00078 | 2 |
