Plain weave twill weave 304 304L 316 316L stainless steel wire mesh

Brand: Haocheng
Model: HC-01
Certification Certificate: ISO9001:2015,SGS
Country of Origin: China

Categories :
Contact Now
  • Brief Introduction

Custom Attributes

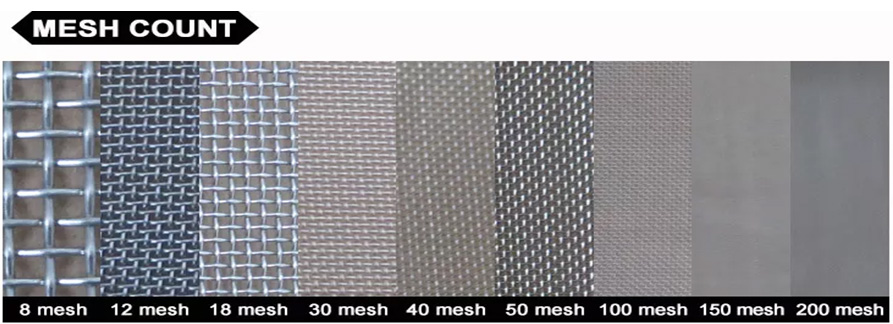

Mesh Count: 1-635 mesh
Color: Dark grey, silver
Common Material: Stainless steel 201,304,304L,316,316L etc

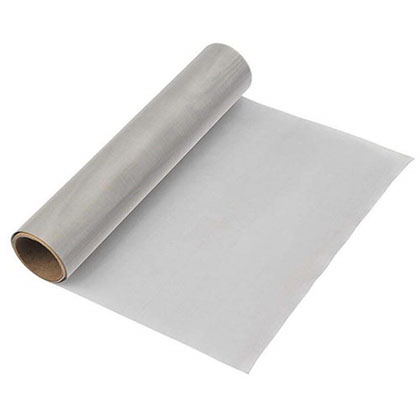

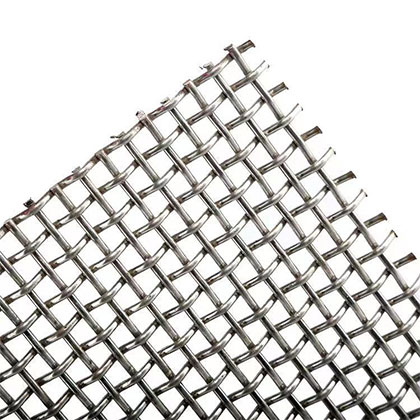

Weave: Plain weave,twill weave
Hole Shape: Square or rectangular
Characteristics: Not easy to rust,sturdy and durable

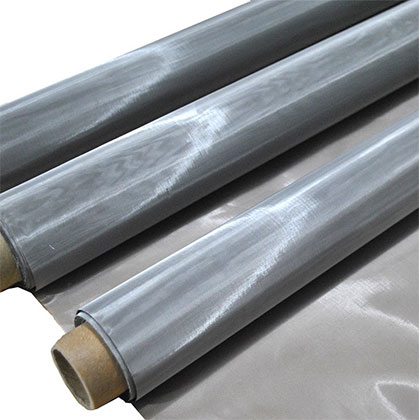

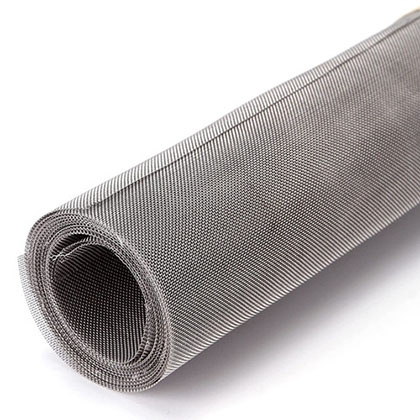

Shape: In roll or in pc( square, rectangular,round or any size required)

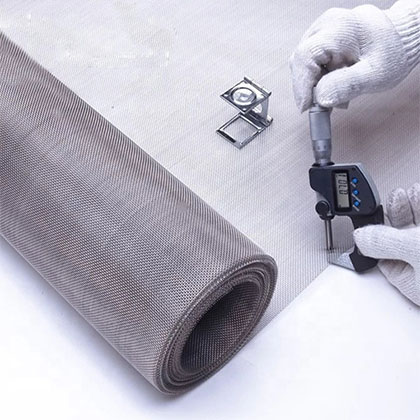

Product Description

Product Name Stainless steel woven wire mesh,Stainless steel mesh screen, Stainless steel wire cloth,Stainless steel wire mesh
Material Grade 304,304L,316,316L,310S,904L etc
Wire Diameter Range 0.02-6.30mm
Mesh Width 1m,1.22m,1.5m,1.8m,2.0m or customized
Mesh Length Usually 30m per roll, any length can be customized
Test Report PMI raw material test
Feature Corrosion resistant, acid resistant, alkali resistant, heat resistant
Samples Available

Woven wire mesh or woven wire cloth, is woven by machine. It is similar to the process of weaving clothing, but made of stainless steel wire. The mesh can be made through different weave styles. The purpose is to produce solid and reliable products to adapt to various complex application environments.High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of uses.

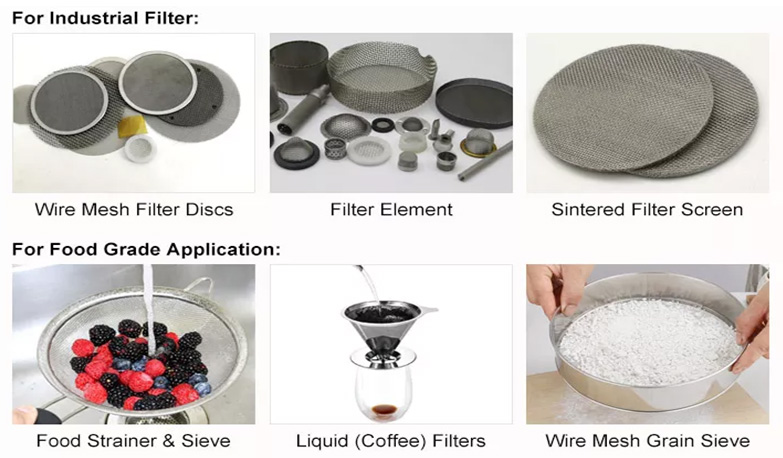

Product Application
The petroleum, chemical environmental protection, mining, aerospace, paper making, electronic, metallurgical, food and pharmaceutical industries all utilize woven wire mesh. Main function is filtering,screeing and sieving.

Wire Mesh Size (plain,twill weave)
Sr No Mesh Gauge Wire Dia In mm Aperture/Opening In Microns Wt/Sq Mtr Kgs Weave % Open Area
1 8 24 0.558 2617 1.228 Plain 67.94
2 8 26 0.457 2718 0.824 Plain 73.28
3 8 27 0.400 2775 0.631 Plain 76.39
4 8 28 0.376 2799 0.558 Plain 77.72
5 10 24 0.558 1982 1.535 Plain 60.89
6 10 26 0.457 2083 1.030 Plain 67.25
7 10 28 0.376 2164 0.697 Plain 72.59
8 12 24 0.558 1559 1.842 Plain 54.23
9 12 26 0.457 1660 1.236 Plain 61.48
10 12 27 0.400 1717 0.947 Plain 65.78
11 12 28 0.376 1741 0.836 Plain 67.63
12 12 30 0.315 1802 0.587 Plain 72.45
13 12 30.5 0.300 1817 0.532 Plain 73.66
14 14 24 0.558 1256 2.149 Plain 47.95
15 14 26 0.457 1357 1.441 Plain 55.97
16 14 27 0.400 1414 1.104 Plain 60.77
17 16 27 0.400 1188 1.262 Plain 55.96
18 16 28 0.376 1212 1.115 Plain 58.24
19 16 30 0.315 1273 0.783 Plain 64.25
20 16 30.5 0.300 1288 0.710 Plain 65.78
21 16 26 0.457 1131 1.647 Plain 50.71
22 18 26 0.457 954 1.853 Plain 45.72
23 18 28 0.376 1035 1.255 Plain 53.81
24 20 26 0.457 813 2.059 Plain 40.98
25 20 28 0.376 894 1.394 Plain 49.55
26 20 30 0.315 955 0.978 Plain 56.55
27 20 30.5 0.300 970 0.887 Plain 58.34
28 20 32 0.274 996 0.740 Plain 61.51
29 20 32.5 0.264 1006 0.687 Plain 62.75
30 24 30 0.315 743 1.174 Plain 49.33
31 24 30.5 0.3 758 1.065 Plain 51.34
32 24 32 0.274 784 0.888 Plain 54.92
33 24 32.5 0.264 794 0.825 Plain 56.33
34 24 36 0.193 865 0.441 Plain 66.85
35 28 30 0.315 592 1.370 Plain 42.61
36 28 30.5 0.300 607 1.242 Plain 44.80
37 28 32 0.274 633 1.036 Plain 48.71
38 28 32.5 0.264 643 0.962 Plain 50.26
39 30 30 0.315 532 1.468 Plain 39.43
40 30 30.5 0.300 547 1.331 Plain 41.69
41 30 32 0.274 573 1.110 Plain 45.75
42 30 32.5 0.264 583 1.031 Plain 47.36
43 30 34 0.234 613 0.810 Plain 52.36
44 35 32 0.274 452 1.295 Plain 38.74
45 35 32.5 0.264 462 1.203 Plain 40.48
46 35 34 0.234 492 0.945 Plain 45.91
47 35 36 0.193 533 0.643 Plain 53.88
48 35 37 0.173 553 0.516 Plain 58.01
49 36 32 0.274 432 1.332 Plain 37.41
50 40 32 0.274 361 1.480 Plain 32.32
51 40 32.5 0.264 371 1.374 Plain 34.14
52 40 33 0.254 381 1.272 Plain 36.00
53 40 34 0.234 401 1.080 Plain 39.88
54 40 36 0.193 442 0.735 Plain 48.45
55 40 37 0.173 462 0.590 Plain 52.93
56 40 38 0.152 483 0.456 Plain 57.86
57 42 38.5 0.140 465 0.406 Plain 59.06
58 50 34 0.234 274 1.350 Plain 29.09
59 50 36 0.193 315 0.918 Plain 38.45
60 50 38 0.152 356 0.570 Plain 49.11
61 60 34 0.234 189 1.620 Twill 20.00
62 60 36 0.193 230 1.102 Plain 29.60
63 60 37 0.173 250 0.885 Plain 34.97
64 60 38 0.152 271 0.683 Plain 41.08
65 80 38 0.152 166 0.911 Twill 27.17
66 80 38.5 0.140 178 0.773 Plain 31.25
67 80 40 0.122 196 0.587 Plain 37.91
68 80 42 0.102 216 0.410 Plain 46.07
69 80 43 0.091 227 0.327 Plain 50.89
70 93 41 0.112 161 0.575 Plain 34.80
71 100 41 0.112 142 0.618 Plain 31.25
72 100 42 0.102 152 0.513 Plain 35.81
73 100 43 0.091 163 0.408 Plain 41.18
74 100 44 0.081 173 0.323 Plain 46.39
75 100 45.5 0.063 191 0.196 Plain 56.55
76 120 43 0.091 121 0.490 Plain 32.50
77 120 44 0.081 131 0.388 Plain 38.11
78 120 45 0.070 142 0.290 Plain 44.80
79 120 45.5 0.063 149 0.235 Plain 49.33
80 140 45 0.070 111 0.338 Plain 37.72
81 150 45 0.070 99 0.362 Plain 34.41
82 150 45.5 0.063 106 0.294 Plain 39.43
83 150 47 0.050 119 0.185 Plain 49.66
84 170 45.5 0.063 86 0.333 Plain 33.45
85 170 47 0.050 99 0.210 Plain 44.27
86 200 47 0.050 77 0.247 Plain 36.76
87 240 47 0.050 56 0.296 Plain 27.83
88 250 48 0.040 62 0.197 Plain & Twill 36.76
89 300 48 0.040 45 0.237 Twill 27.83
90 300 49 0.030 55 0.133 Plain & Twill 41.69
91 320 49 0.030 49 0.142 Twill 38.69
92 325 48 0.040 38 0.256 Twill 23.83
93 325 48.5 0.035 43 0.196 Twill 30.49
94 325 49 0.030 48 0.144 Plain & Twill 37.96
95 400 49.5 0.028 36 0.155 Twill 31.25
96 400 50 0.025 39 0.123 Twill 36.76
97 500 50 0.025 26 0.154 Twill 25.79
98 635 0.0183 20 0.1 Twill 25
