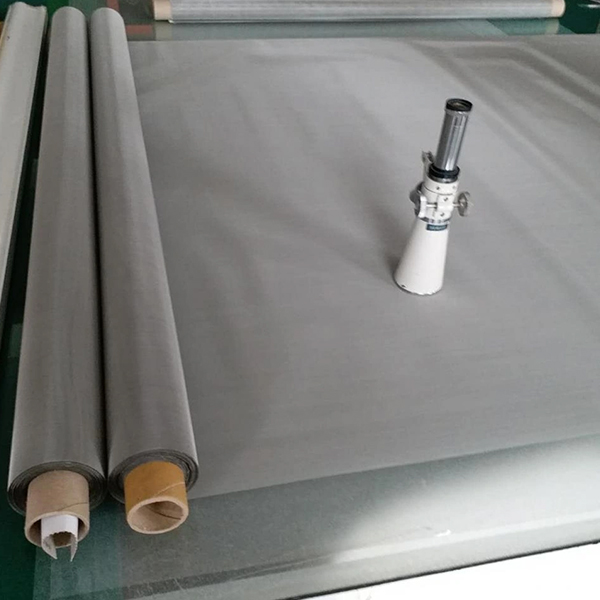

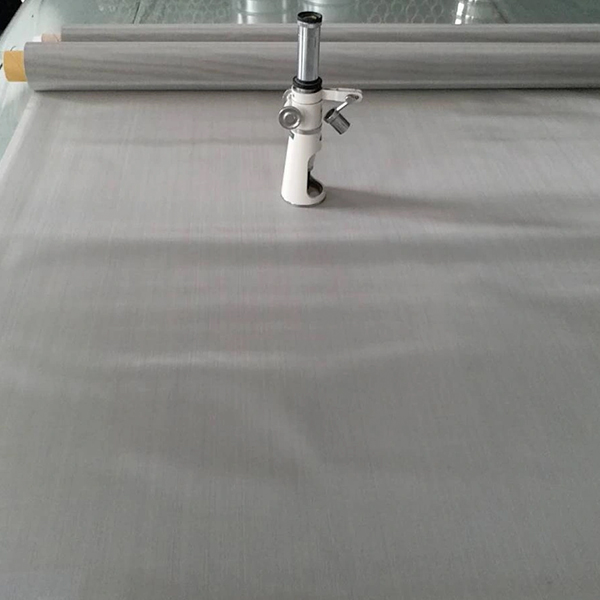

Description
Material: stainless steel wires.
Mesh counts: 200 mesh to 500 mesh.

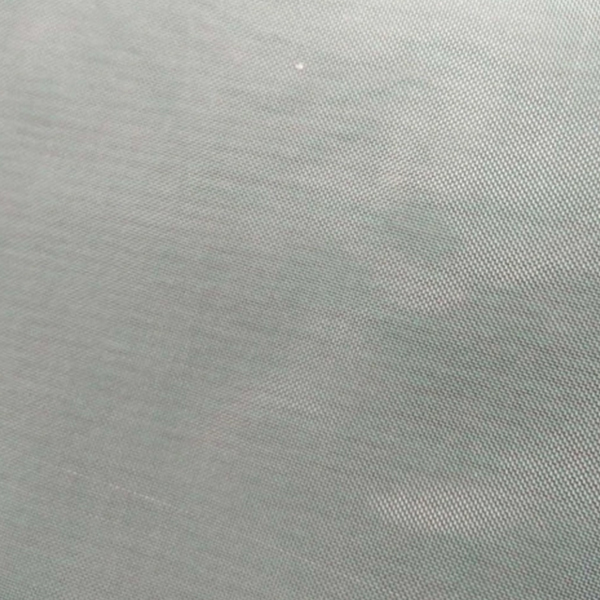

Weaving method: plain weave.
Width: 48″ or 40″ or other customized widths.
Length: 30 m and customized lengths.
Features:
All Haocheng screen printing meshes have a high resistance to aggressive inks and pastes, despite their fine structures. Precisely defined cloth thicknesses, very high mesh accuracies and tight tolerances as well as precisely defined print layer thicknesses permit outstanding print results. In addition to a large standard programme for different application profiles, we also manufacture individual special solutions.
Application:
Widely used in the plate making of electronics, textiles, ceramics, glass and other industries and filtration of aviation, airspace and petrochemical industries.
| Plain Weave Stainless Steel Screen Printing Mesh | ||||
| Item | Mesh count | Thread Diameter | Open Area | Aperture |
| Mesh/inch | um | % | um | |
| SPMS-200-50 | 200 | 50 | 37.0 | 77 |
| SPMS-230-35 | 230 | 35 | 46.7 | 75 |
| SPMS-250-40 | 250 | 40 | 36.8 | 62 |
| SPMS-250-30 | 250 | 30 | 49.7 | 72 |
| SPMS-250-35 | 250 | 35 | 43.0 | 67 |
| SPMS-270-35 | 270 | 35 | 39.4 | 59 |
| SPMS-300-30 | 300 | 30 | 41.7 | 55 |
| SPMS-325-30 | 325 | 30 | 38.0 | 48 |
| SPMS-325-28 | 325 | 28 | 41.2 | 50 |
| SPMS-325-23 | 325 | 23 | 49.8 | 55 |
| SPMS-350-25 | 350 | 25 | 43.0 | 48 |
| SPMS-400-23 | 400 | 23 | 40.7 | 41 |
| SPMS-400-18 | 400 | 18 | 51.3 | 46 |
| SPMS-500-18 | 500 | 18 | 41.7 | 33 |
